This set is intended for the installation of a 1000m invisible fence.

Suitable for all breeds of dogs - the possibility of 8 correction pulses.

Package contents:

• generator
• power adapter
• magnet with neck cord
• notch connectors 18 pcs
• receiver with woven belt (75 cm)
• 10x 100m 2.5mm wire
• contact points 12 and 17 mm
• lithium battery CR2 3V
• glow test
• instructions and DVD
• certificate for 3 years warranty

The electronic systems of the generator and collar use modern technology based on single-chip microprocessors. The device is suitable for any type of terrain, it can be very easily installed using common tools. For the invisible fence system to work, the wire must be connected to the transmitter and form an unbroken loop of wire (avoid damaging it). From the transmitter, unwind the wire around the plot. The wire can be placed on the ground, shallowly buried (max. 10 cm deep) or attached to an existing fence or wall (in this case up to a height of 30 cm above the ground). The standard package includes 100 m of antenna wire. If you need more than 100 m, you can buy another package from us and then connect the wire with the help of notch connectors (2 notch connectors are part of the basic package). If you want the dog to be able to pass freely through a certain place on your plot, where you have to run a wire, wind the outgoing wire around the incoming one, twisting the wires around each other causes the emitted waves to be disturbed and the dog can move freely through this place. The voltage in the antenna does not exceed 12 V, so there is no danger even if the wire is interrupted. For better orientation, it is possible to mark the defined area with targets.

Advantages of the invisible d-fence:

• very easy and fast installation (fence can be functional within 1 hour)
• cheap and very variable variant of fencing the land - if necessary, you can change the fencing in a moment according to current requirements (delimitation of the pool, flower beds, rock garden, entrance door to the house, etc.)
• the fence is "invisible", ie. that it does not disturb the view of the surroundings, nor aesthetically disturb the garden, it can complement the existing fence, which the dog still overcomes (jumps, digs, bites)
• you can keep any number of dogs in the space

Transmitting generator

• 1st zone (warning): infinitely adjustable from 0.4 to 5 meters
• 2nd band (correction): continuously adjustable in the range of 0.3 to 1.5 meters
• wire: low-impedance copper insulated 0.75 to 2.5 mm2, length max. 1200 meters
• power supply: adapter 230 V / 50 Hz, 15 V / 100 mA
• limited area: 9 ha
• dimensions 152 x 119 x 42 (L x W x H)

Collar

• dimensions: 34 x 43 x 64 mm
• weight: 60 g (without battery and electrodes)
• power supply: lithium battery CR2 3V
• battery life: 6 months in standby mode
• adjustable neck circumference: 18 to 70 cm

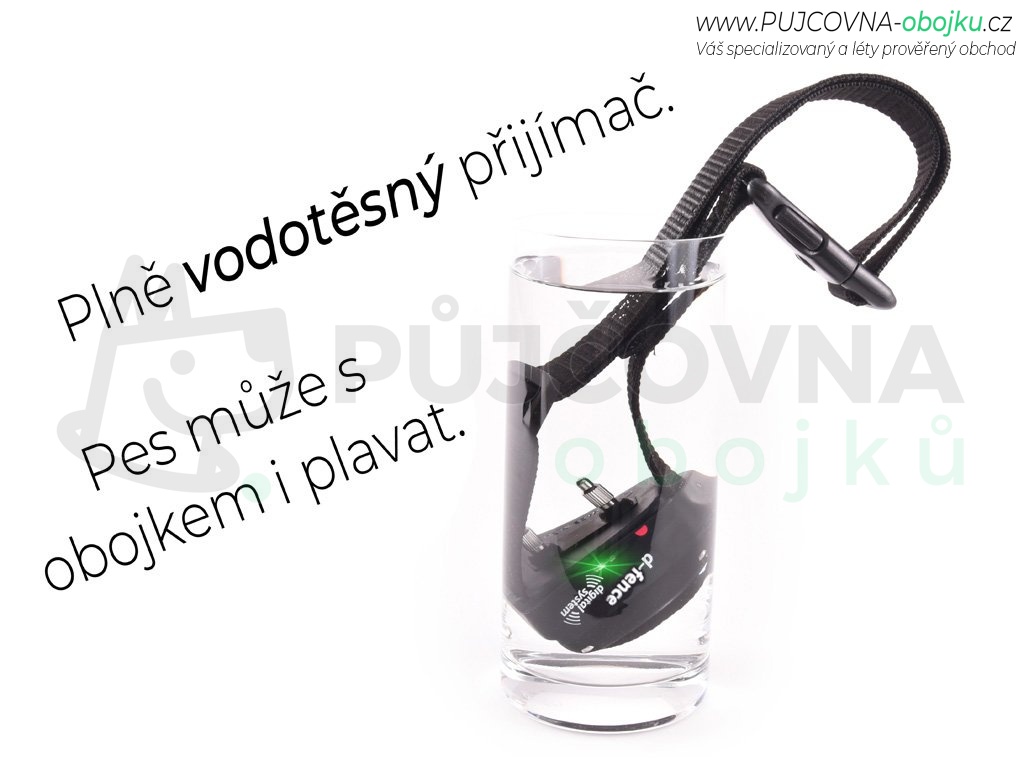

• waterproof , reliable in any mode (the dog can swim with a collar)
• the intensity of the stimulation pulse can be set on the collar in eight levels
• ISIT function allows to detect the occurrence and intensity of interfering signals in places where you plan to install the antenna wire and thus prevent possible problems with the proper functioning of the d-fence device

Installation length - recommended wire cross section:

• up to 400 m - 0.75 mm
• 400 m - 600 m - 1 mm
• 600 m - 900 m - 1.5 mm
• 900 m - 1200 m - 2.5 mm (for model D-fence 1001)
• 900 m - 2200 m - 2.5 mm (for model D-fence 202)
